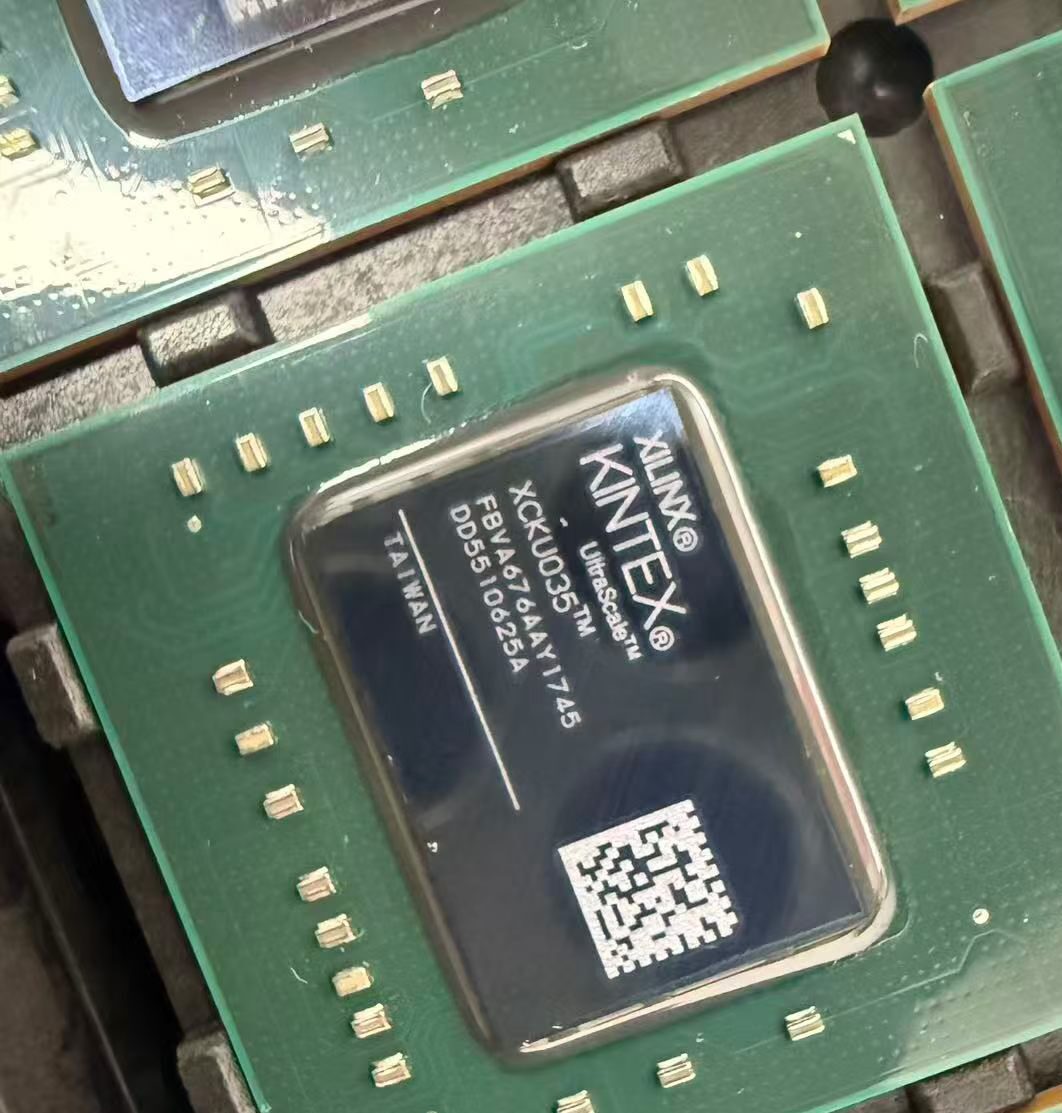

AMD Xilinx XCKU035-1FBVA676 Kintex UltraScale FPGA
AMD Xilinx XCKU035-1FBVA676 is a Kintex UltraScale FPGA featuring approximately 444K system logic cells, 19Mb Block RAM, 1,700 DSP slices and 16 GTH high-speed transceivers. It uses a 676-ball FBVA package and -1 speed grade.
Brand: AMD / Xilinx
Part Number: XCKU035-1FBVA676
Family: Kintex UltraScale
System Logic Cells: 444,343
CLB LUTs: 203,128
CLB Flip-Flops: 406,256
Block RAM: 19Mb
DSP Slices: 1,700
GTH Transceivers: 16
User I/Os: 312
Speed Grade: -1
Package: FBVA676
Ball Count: 676
Package Size: 27 × 27mm
Contact us for stock, pricing, date code, lead time and bulk-order quotations.
Stock: 99998
WhatsAppGuaranteed Safe Checkout
EXPRESSDISCOVER
Product Description
AMD Xilinx XCKU035-1FBVA676 Kintex UltraScale FPGA
The XCKU035-1FBVA676 is a high-performance FPGA from the AMD Xilinx Kintex UltraScale family, designed for applications requiring high logic density, DSP performance, high-speed serial connectivity and flexible I/O resources.
The XCKU035 device provides 444,343 system logic cells, 203,128 CLB LUTs, 406,256 CLB flip-flops, 19Mb of Block RAM and 1,700 DSP slices, enabling implementation of complex digital signal processing, communications, video, networking and industrial control functions.
The FBVA676 package provides 208 high-performance I/Os, 104 high-range I/Os and 16 GTH transceivers in a 27mm × 27mm package. For FB package options, GTH serial transceivers support data rates up to 12.5Gb/s.
Key Features
- AMD Xilinx Kintex UltraScale architecture
- 444,343 system logic cells
- 203,128 CLB LUTs
- 406,256 CLB flip-flops
- 19Mb total Block RAM
- 540 × 36Kb Block RAM blocks
- 1,700 DSP slices
- 10 clock management tiles
- 16 GTH high-speed transceivers
- Up to 12.5Gb/s GTH data rate in FBVA package
- Integrated PCI Express Gen1/Gen2/Gen3 resources
- 208 HP I/Os in FBVA676 package
- 104 HR I/Os in FBVA676 package
- 312 total user I/Os
- -1 speed grade
- FBVA676 BGA package
- 27mm × 27mm package size
- Supported by AMD Vivado Design Suite
Typical Applications
- High-speed communications
- Digital signal processing
- Video and image processing
- PCI Express systems
- Industrial automation
- Test and measurement equipment
- Data acquisition systems
- Networking equipment
- Aerospace and instrumentation systems
- High-performance embedded systems
Ordering Information
Manufacturer: AMD / Xilinx
Part Number: XCKU035-1FBVA676
Family: Kintex UltraScale
Device: XCKU035
Speed Grade: -1
Package: FBVA676
Ball Count: 676
Package Size: 27 × 27mm
Contact XENSAIL for current stock, date code, pricing, lead time and volume-order quotations.
AMD's current UltraScale documentation continues to list XCKU035 production silicon and FBVA676 support.
