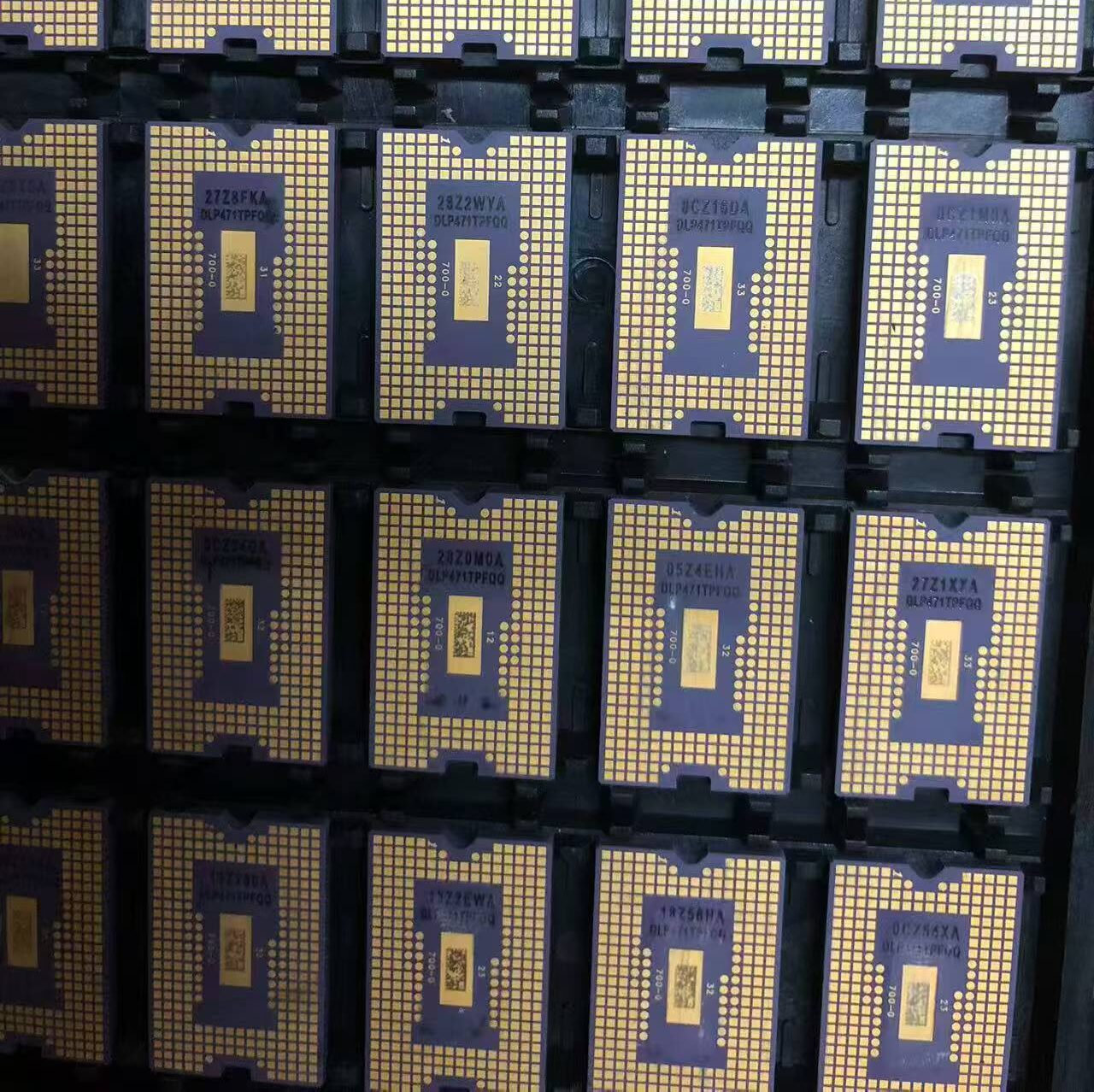

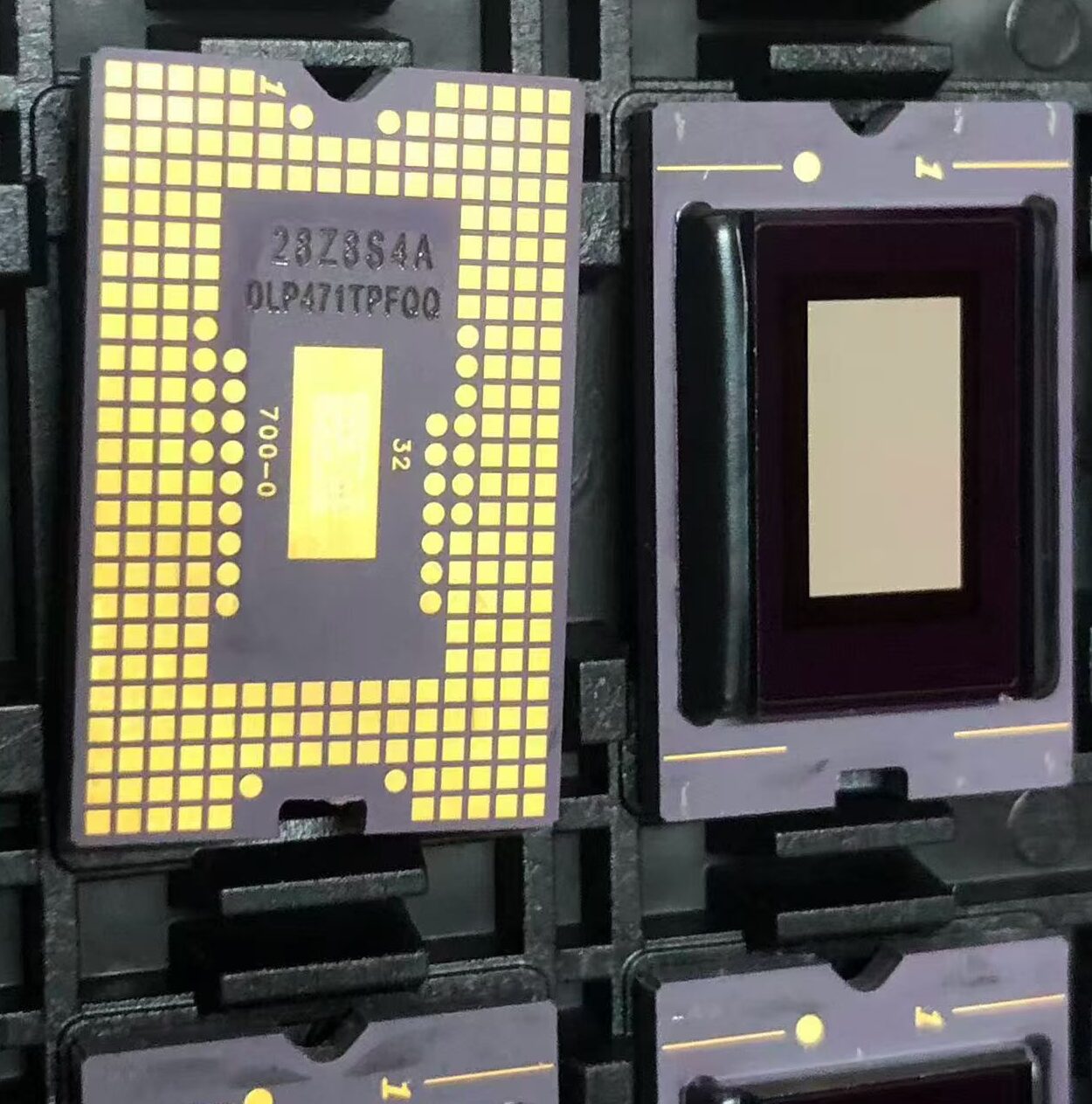

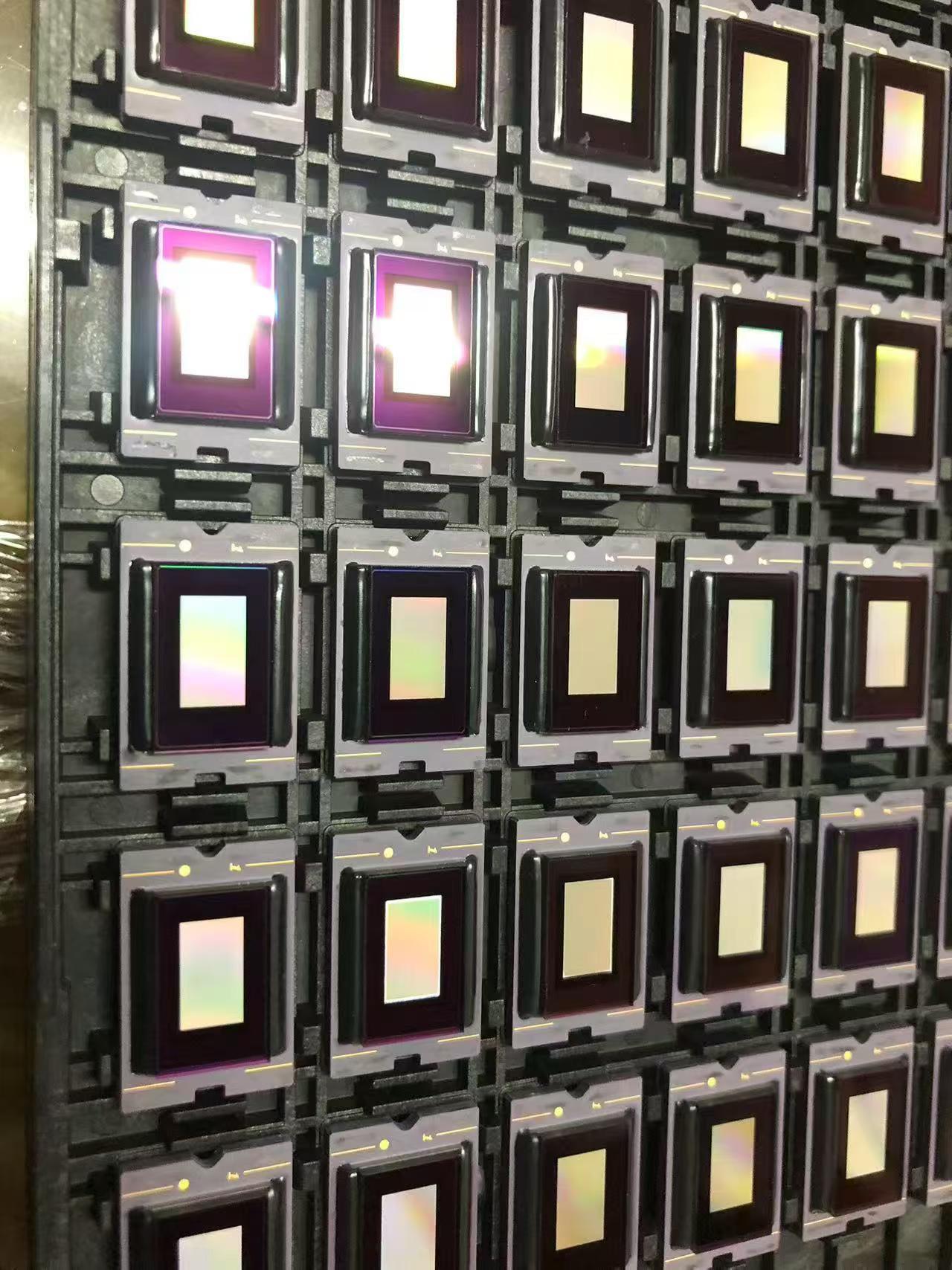

Texas Instruments DLP471TPFQQ 0.47-Inch 4K UHD DLP DMD

Brand: Texas Instruments
Manufacturer: Texas Instruments
Part Number: DLP471TPFQQ
Series: DLP471TP
Product Type: Digital Micromirror Device (DMD)
Technology: DLP / MEMS Spatial Light Modulator
Array Diagonal: 0.47 inch
Physical Micromirror Array: 1920 × 1080
Maximum Display Resolution: 3840 × 2160 (4K UHD)
Maximum 4K Frame Rate: 60Hz
1080p Frame Rate: Up to 240Hz
Micromirror Pitch: 5.4µm
Micromirror Tilt: ±17°
Illumination: Bottom Illumination
Data Interface: High-Speed Serial Interface (HSSI)
Recommended Controller: DLPC6540
Recommended PMIC / LED Driver: DLPA3005
Maximum System Brightness: Up to 1800 lm
Package Type: CLGA
Package Code: FQQ
TI Package Drawing: DLP-S317
Pin Count: 270
Package Dimensions: Approx. 25.65 × 16.9mm
Operating Temperature: 0°C to +70°C
Lead Finish / Ball Material: NiAu
RoHS: Yes
REACH: Yes
Packaging: JEDEC Tray
Standard Pack Quantity: 54 pcs
Product Status: Active / Production

TI officially lists the device as an active 0.47-inch 4K UHD DMD with a 1920 × 1080 micromirror array, 5.4µm pitch, 4K UHD 60Hz operation and 270-pin FQQ package.
